Attributes

• METHOD TYPEE-wallet
• PAYMENTS
• PAYOUTS
• REFUNDS
• RECURRING

Introduction

LINE Pay is a payment method available in Japan that allows users to make purchases using the LINE Pay mobile app. After users select the LINE Pay payment method and either log in to the LINE Pay website or scan a QR code using the mobile phone, they complete the payment using the LINE Pay mobile app.

Supported Countries

• Japan

Supported Currencies

• JPY

Payment (Deposit) Flow

Follow these steps to perform a payment using Nuvei REST API integration:

1. Generate a sessionToken

Press here for details.

2. Send a /payment Request

Perform the payment by sending a /payment request with its mandatory parameters including:

• userTokenId
• amount
• currency
• paymentOption.alternativePaymentMethod class containing:
  • paymentMethod: “apmgw_LINE_Pay“
• deviceDetails class containing: ipAddress
• billingAddress class containing: firstName, lastName, email, country
• userDetails class containing: firstName, lastName, email, country
• urlDetails class containing: successUrl, failureUrl, pendingUrl

Example /payment Request

{
  "sessionToken":"<sessionToken from /getSessionToken>",
  "merchantId":"<your merchantId>",
  "merchantSiteId":"<your merchantSiteId>",
  "clientRequestId":"<unique request ID in merchant system>",
  "amount":"1000",
  "currency":"JPY",
  "userTokenId":"<unique customer identifier in merchant system>",
  "clientUniqueId":"<unique transaction ID in merchant system>",
  "paymentOption":{
    "alternativePaymentMethod":{
      "paymentMethod":"apmgw_LINE_Pay"
    }
  },
  "deviceDetails":{
    "ipAddress":"<customer's IP address>"
  },
  "billingAddress":{
    "firstName":"John",
    "lastName":"Smith",
    "email":"[email protected]",
    "country":"JP"
  },
  "userDetails":{
    "firstName":"John",
    "lastName":"Smith",
    "email":"[email protected]",
    "country":"JP"
  },
 "urlDetails": {
   "successUrl": "<http://merchantsuccessURL.html?deep_link=parameter>",
   "failureUrl": "<http://merchantfailureURL.html?deep_link=parameter>",
   "pendingUrl": "<<http://merchantpendingURL.html?deep_link=parameter>"
},
  "timeStamp":"<YYYYMMDDHHmmss>",
  "checksum":"<calculated checksum>"
}

Example /payment Response

{
  "internalRequestId": 1712060276799,
  "status": "SUCCESS",
  "errCode": 0,
  "reason": "",
  "merchantId": "5416795427517477813",
  "merchantSiteId": "186111",
  "version": "1.0",
  "clientRequestId": "20240402151757",
  "sessionToken": "86d8208b-7eee-4d41-b40a-40f58fb612a2",
  "orderId": "42308651",
  "paymentOption": {
    "redirectUrl": "https://webapp-apm-globalpay-api-qa.nuvei.com/Home?PaymentToken=6D213E50DC0936E6083238F6644DE969.6889274",
    "userPaymentOptionId": "",
    "card": {}
  },
  "transactionStatus": "REDIRECT"
}

After the transaction is processed, Nuvei sends a Direct Merchant Notification (DMN) that includes the result of the transaction to the URL provided in urlDetails.notificationUrl, which Nuvei recommends including in the /payment request.

Example /payment DMN with status=APPROVED

...'ppp_status=OK&Status=APPROVED&ExErrCode=0&ErrCode=0&errApmCode=0&errApmDescription=&errScCode=0&errScDescription=&Reason=&ReasonCode=0&PPP_TransactionID=42309211&userid=&merchant_unique_id=&customData=&productId=&first_name=Fname&last_name=Lname&email=test%40mymail.com&currency=JPY&customField1=&customField2=&customField3=&customField4=&customField5=&customField6=&customField7=&customField8=&customField9=&customField10=&customField11=&customField12=&customField13=&customField14=&customField15=&invoice_id=&address1=Sancho+el+fuerte+15&address2=&country=Japan&state=&city=Madrid&zip=%24%7BzipU%7D&phone1=0987654321&phone2=&phone3=&client_ip=93.146.254.172&nameOnCard=&cardNumber=&bin=&noCVV=&acquirerId=&acquirerBank=Smart2Pay-PI&expMonth=&expYear=&Token=&tokenId=&AuthCode=&AvsCode=&Cvv2Reply=&shippingCountry=&shippingState=&shippingCity=&shippingAddress=&shippingZip=&shippingFirstName=&shippingLastName=&shippingPhone=&shippingCell=&shippingMail=&total_discount=0.00&total_handling=0.00&total_shipping=0.00&total_tax=0.00&buyButtonProductBundleId=&merchant_site_id=186111&merchant_status=&action=&requestVersion=&message=APPROVED&merchantLocale=&unknownParameters=&payment_method=apmgw_LINE_Pay&ID=&merchant_id=5416795427517477813&responseTimeStamp=2024-04-02.12%3A52%3A24&buyButtonProductId=&webMasterId=&appliedPromotions=&uniqueCC=&transactionType=Sale&externalEmail=&cardCompany=&eci=&userPaymentOptionId=&TransactionID=2610000000000016912&externalTransactionId=6889283&APMReferenceID=A7C5D00E99FD89F4280190731339B4EF&orderTransactionId=23742401&totalAmount=1000.00&dynamicDescriptor=hristo+descriptor&item_name_1=NA&item_number_1=&item_amount_1=1000.00&item_quantity_1=1&item_discount_1=0.00&item_handling_1=0.00&item_shipping_1=0.00&feeAmount=&amountWithoutFee=&houseNumber=&customCurrency=&type=DEPOSIT&clientRequestId=20240402155152&relatedTransactionId=&apmPayerInfo=%7B%22StatusInfo%22%3A%22%7B+StatusCode%3A+%2C+info%3A+%2C+originalAmount%3A+1000.0000%2C+ProcessedAmount%3A+100000%2C+originalCurrency%3A+YEN%2C+ProcessedCurrency%3A+JPY+%7D%22%7D&sessionId=eddabbb86b0617bf5cf61d39ee82&responsechecksum=08fba6cc42e719fb0ebdbd7814c377f9e4838028825feca361d76c7e2415669c&advanceResponseChecksum=ca506e1538651ff7f3a610b0c802c01d0723ccfa721e96c650b334055ce60b10',

User Experience

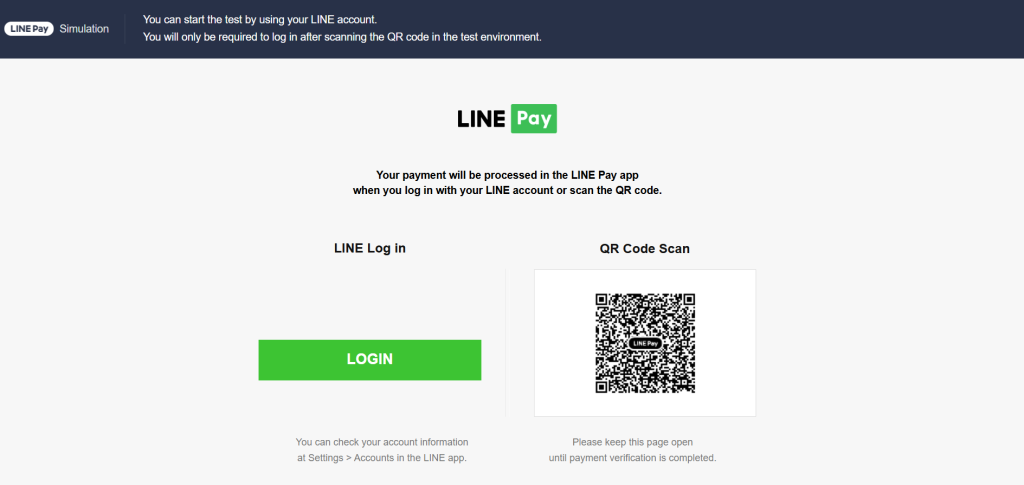

1. The user is redirected to the LINE Pay website.

2. The user logs in or scans the QR code using the mobile phone.
3. The user receives a notification on the mobile phone and the user taps on the notification.

4. The LINE Pay app opens and the user selects a payment funding source.

5. The user confirms the payment details.

6. The user enters the passcode.

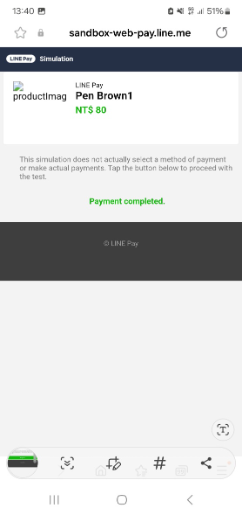

7. Upon completion of payment, the user can return to the service page or view the purchase details.

Testing

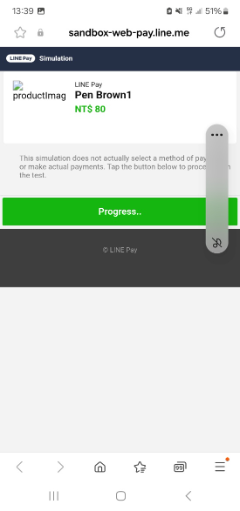

In the sandbox environment, you can simulate an approval or a decline request. To simulate an approval, press the blue button (Pay). To simulate a decline and be redirected to the merchant page, press the red button (Cancel).
